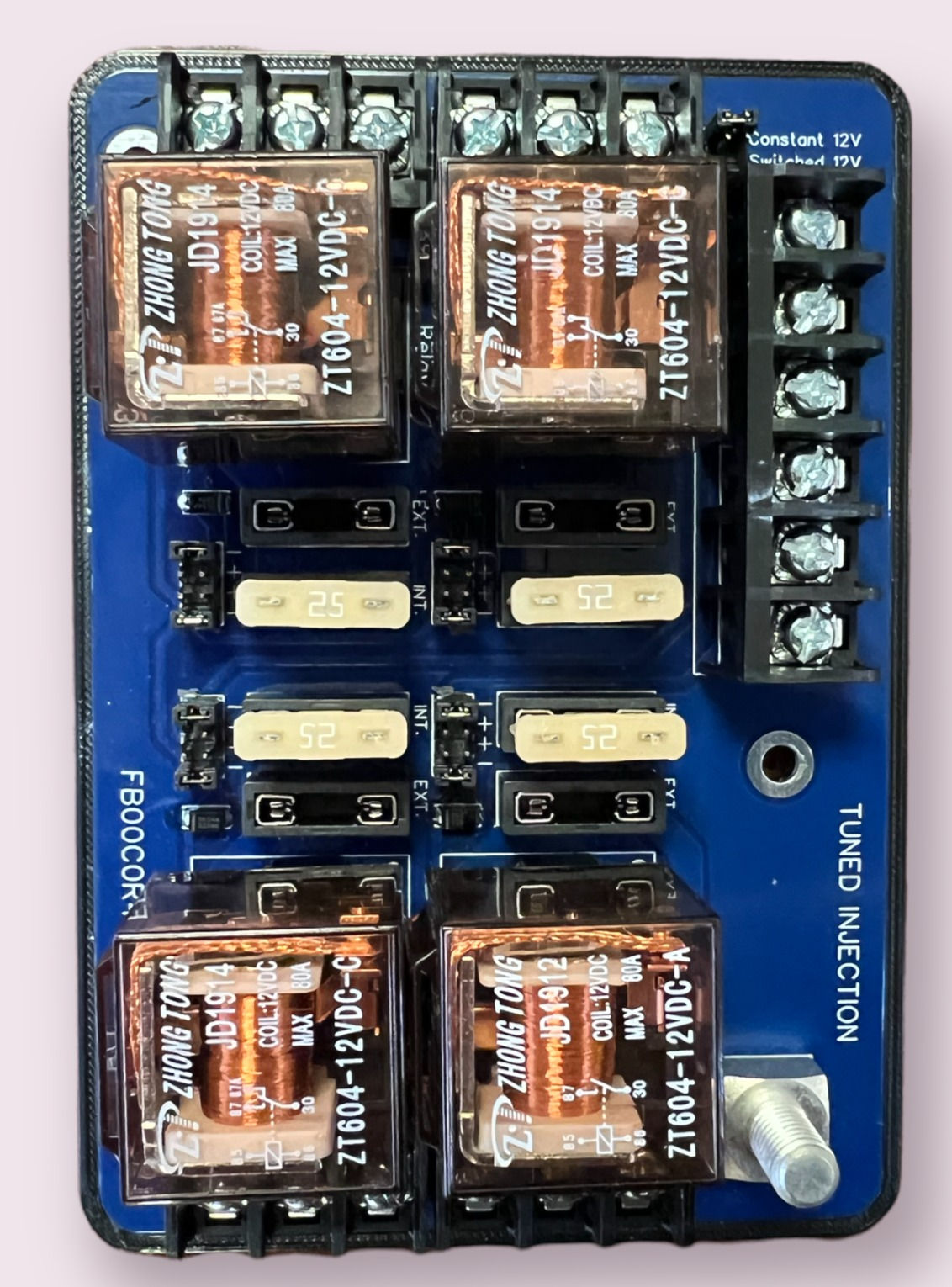

4 Relay Board

FB00C0R4:
This relay board is designed to give you the ability to set up the relay in any configuration needed.
The relays can be set up to be triggered in three ways:
12v Trigger (Jumpers are on the + +)
Ground Trigger with Constant 12v (Jumpers are on the - -) (Constant 12v Jumper in place)
Ground Trigger with keyed 12v (Jumpers are on the - -) (Switched 12v Jumper in place)
The Power source of the relays can be set up in two ways, by simply changing the fuse position:
From the onboard 12V input stud(Fuse is in the INT. socket)
From the external “PWR” (Fuse is in the EXT. socket)



4 Relays
Standard 5 pin Relays
4” x 6.25”
